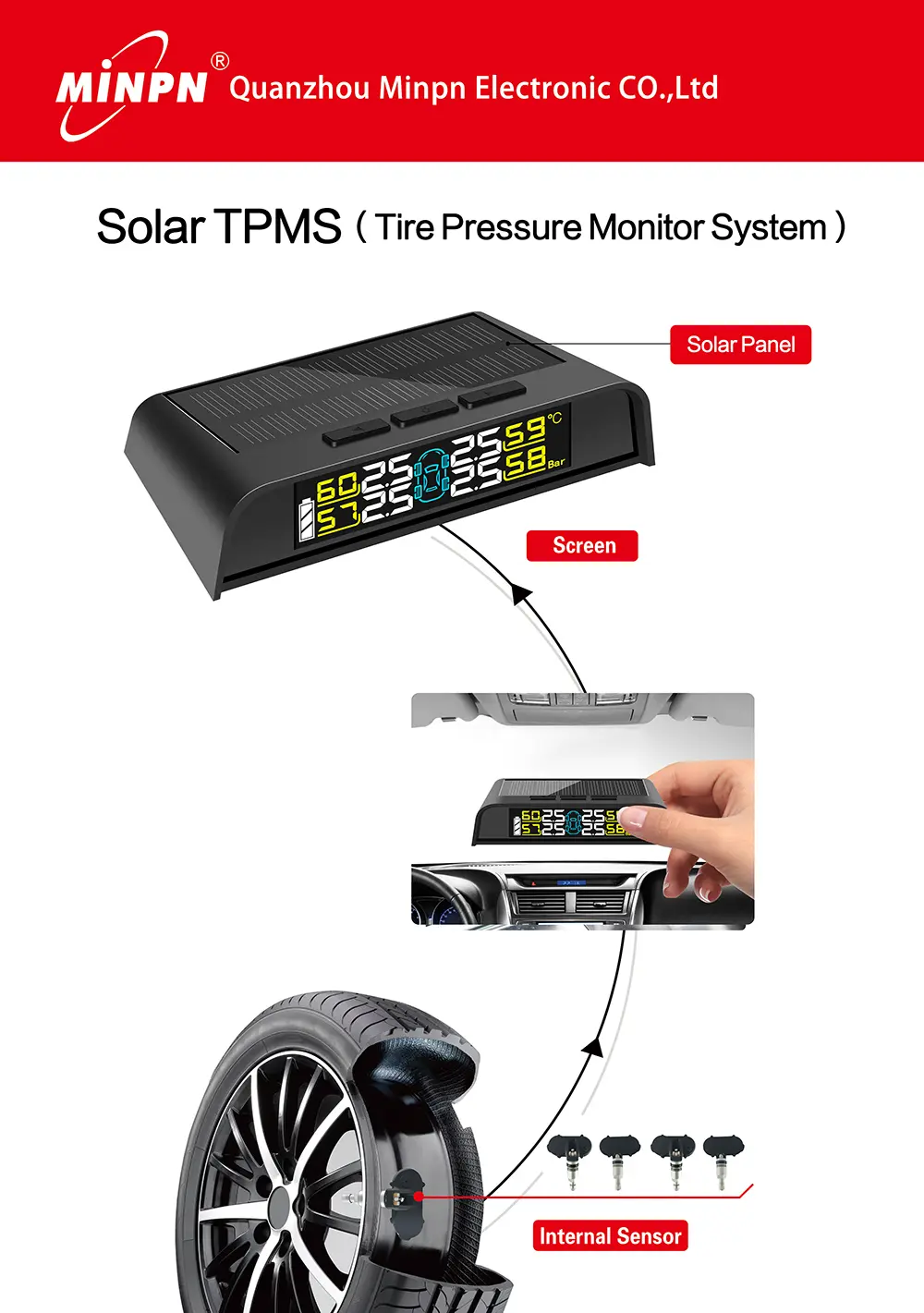

100% DIY installation Solar Tire pressure monitoring system(TPMS) Wireless solar built-in tire pressure monitor

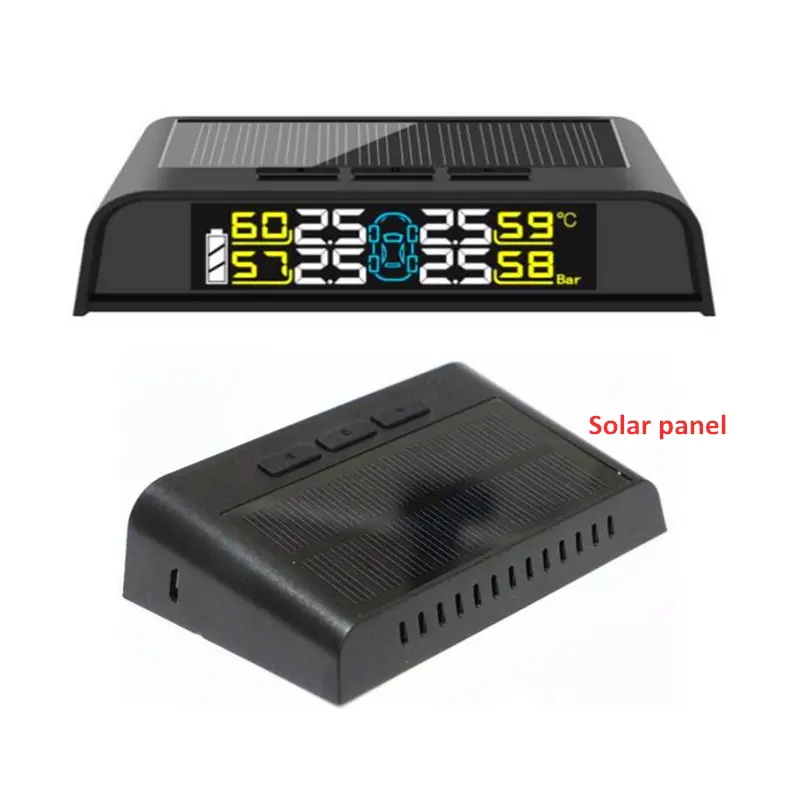

DISPLAY

Receive the data from TPMS and display the corresponding datas on the screen.

Working frequency:433.92MHZ

Charging voltage:DC4.5~5.5V

Working current<25mA

Working temperature:-20℃~+75℃

Display range(Temperature):-9℃~+99℃

Display range(Tire pressure):0~3.1Bar0

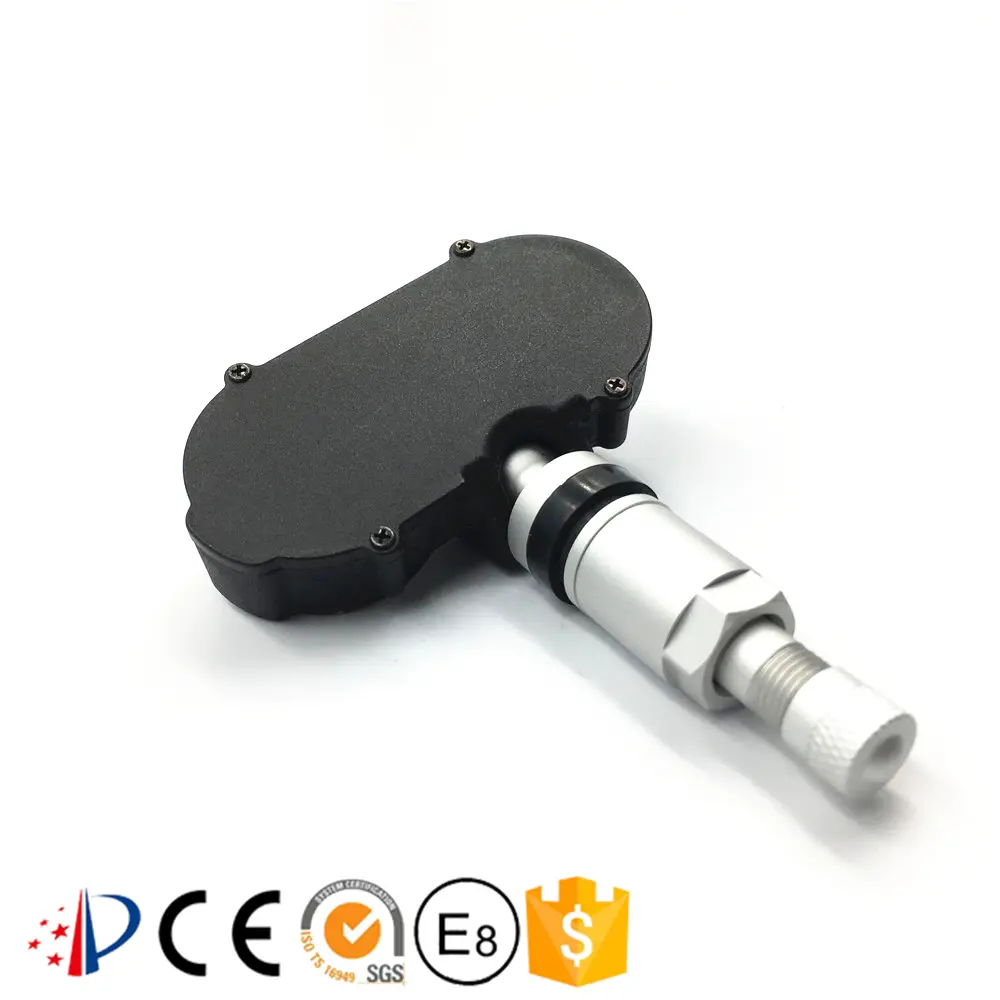

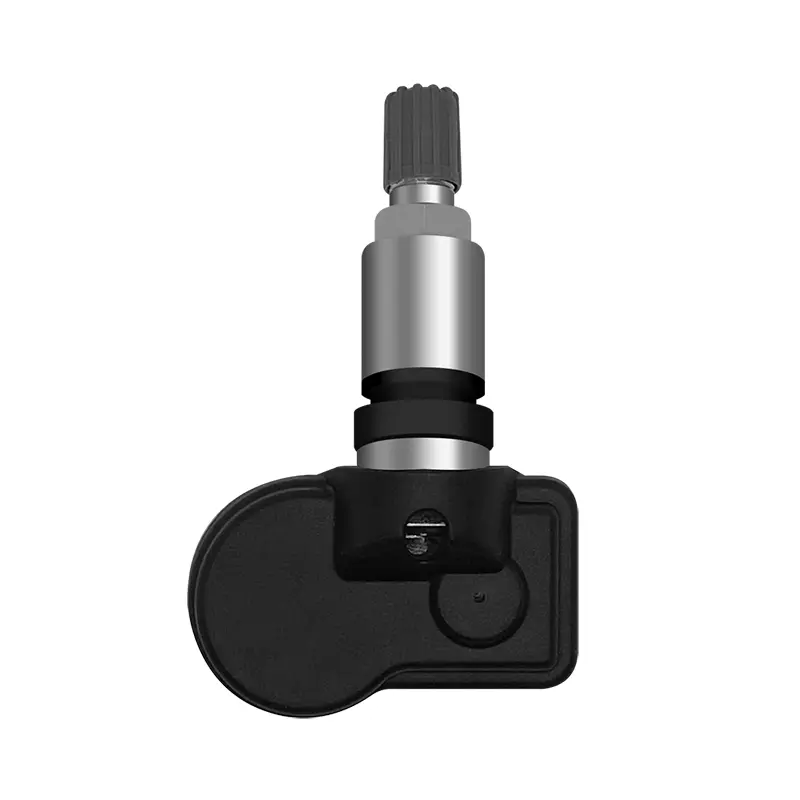

TPMS SENSORS

High performance High efficiency

Working frequency: 433.92MHZ

Working voltage: 2.4-3.4V

Working temperature: -40~ 105 degrees

Monitoring range (temperature) : -40 ~ +125 degrees

Monitoring range (air pressure) : 0 ~ 3.5bar

Working current (static) : < 1uA

Working current (emission) : < 15mA

Accuracy (temperature) : +/- 1 degree

Accuracy (air pressure) : +/ -0.1 Bar

Battery design life: >6 years/80,000kms

SPECIFICATION

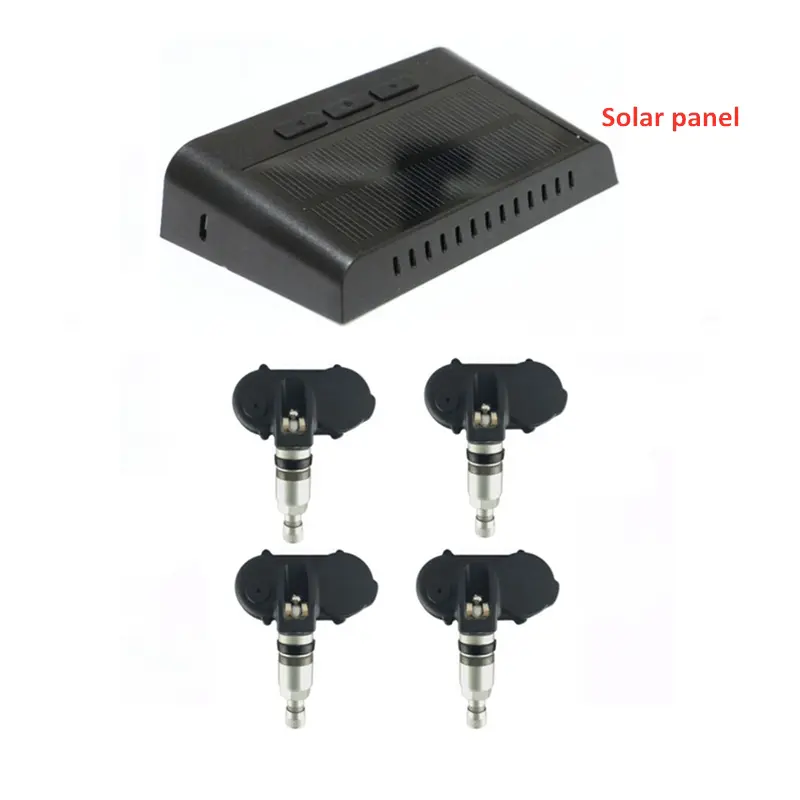

1.TPMS display with solar panel, optional Micro USB input

2. Intelligent sleeping mode for power saving

3.Real-time monitoring of tire pressure and temperature.

4. Advanced digital filtering technology, strong antiinterference, long receiving distance

5. Optimized lo low power system design,durable sensor battery

6. Automatic on/off (wake up/sleep)

7. Automatically adjust the screen brightness and 5 manual adjustment

8. Built-in BMS battery management system

9. Sensor parts AEC-Q100 certificated

10.Pre-programmed sensors, no pairing is needed

11.Wireless, easy installation

Tire pressure monitoring system

Tire pressure monitoring system(TPMS) is an electronic system designed to monitor the air pressure inside the pneumatic tires on various types of vehicles and reports real-time tire pressure information to the driver.The target of a TPMS is avoiding traffic accidents,poor fuel economt,and increased tire wear due to under-inflated tires through early recognition of a hazardous state of the tires.
